Extrusion Heat sinks

•

  What is an extruded heatsink?

  Extrusion heat sinks, also known as extruded heatsinks, are a common thermal management solution used to dissipate heat generated by electronic components such as CPUs, GPUs, power transistors, and LEDs. The principle behind extrusion heat sinks revolves around the process of extruding aluminum profiles into specific shapes and designs optimized for heat dissipation.

  Extrusion heat sinks are typically made from high thermal conductivity materials such as aluminum, which is lightweight, cost-effective, and readily available. The manufacturing process involves forcing heated aluminum billets through a die with a cross-sectional profile that matches the desired shape of the heat sink. As the aluminum passes through the die, it is formed into the required shape, creating intricate fins and channels along its length.

  LEARN MORE>> INQUIRE NOW>>

The principle of extruded heatsink

Extruded heatsinks efficiently dissipate heat generated by electronic components by maximizing surface area while maintaining a lightweight and compact design. Fins and channels on the heatsink's surface increase contact area with surrounding air, enhancing heat transfer through convection. Made of aluminum for its excellent thermal conductivity, the heatsink efficiently conducts heat away from components, preventing overheating.

The extrusion process allows for complex geometries tailored to cooling needs. Custom designs optimize shape and size for maximum heat dissipation while minimizing weight and space requirements. Surface treatments enhance corrosion resistance and aesthetics, ensuring longevity and reliability.

High-quality extruded heatsinks feature precise dimensions, uniform fin spacing, and consistent surface finish for optimal thermal performance. Manufacturers offer standard and custom profiles to accommodate diverse heat dissipation needs, enabling efficient thermal management in electronic devices.

•

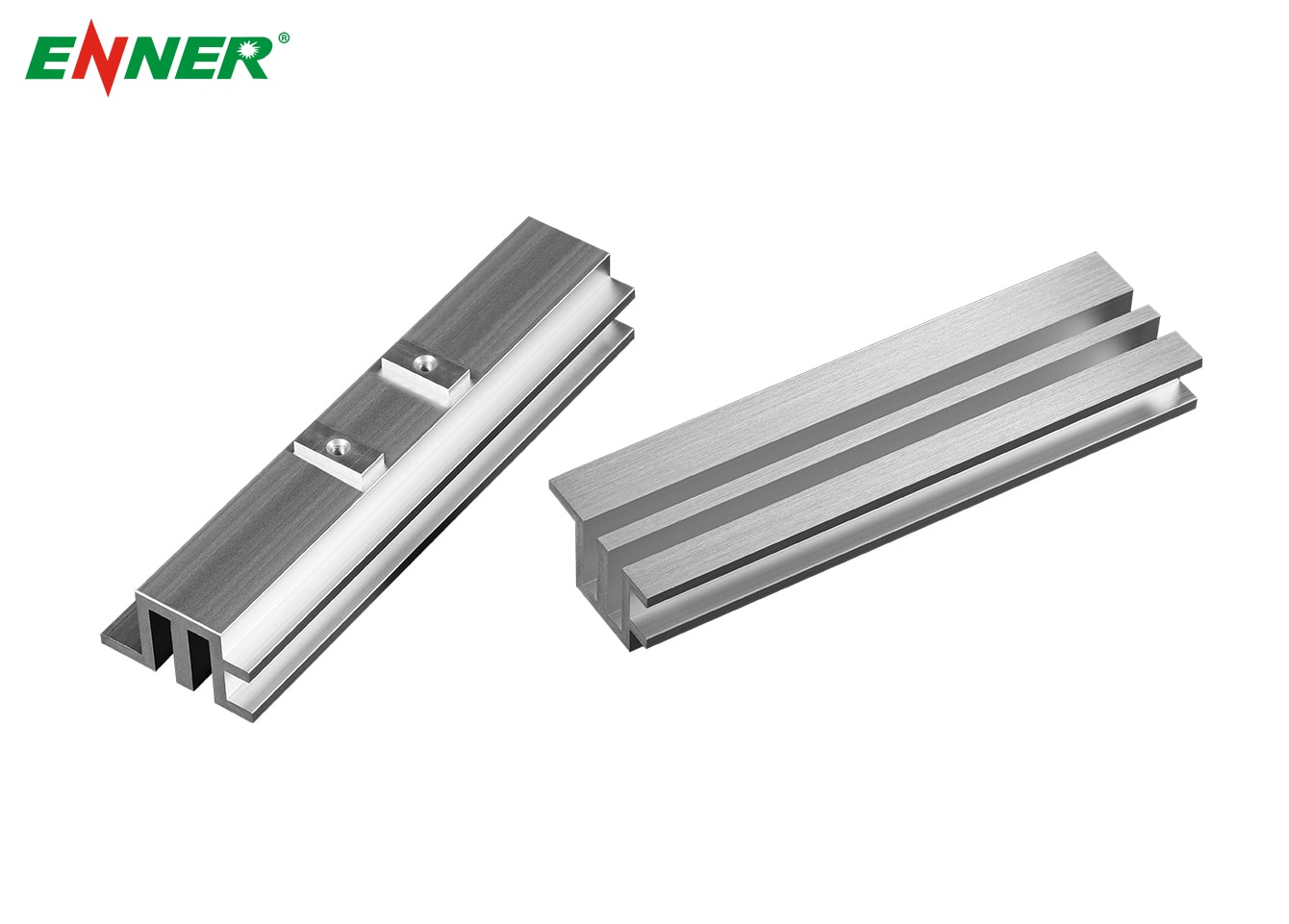

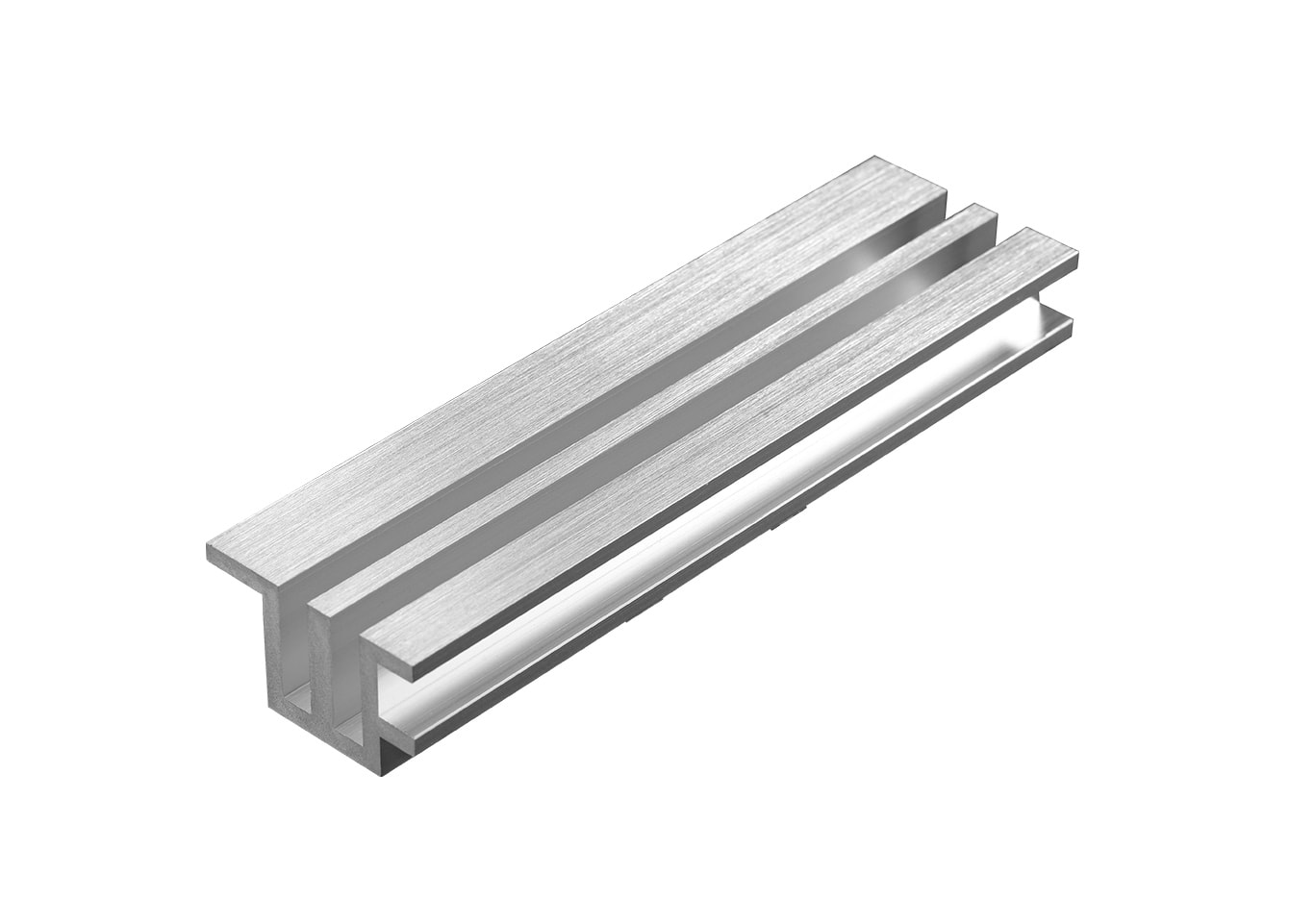

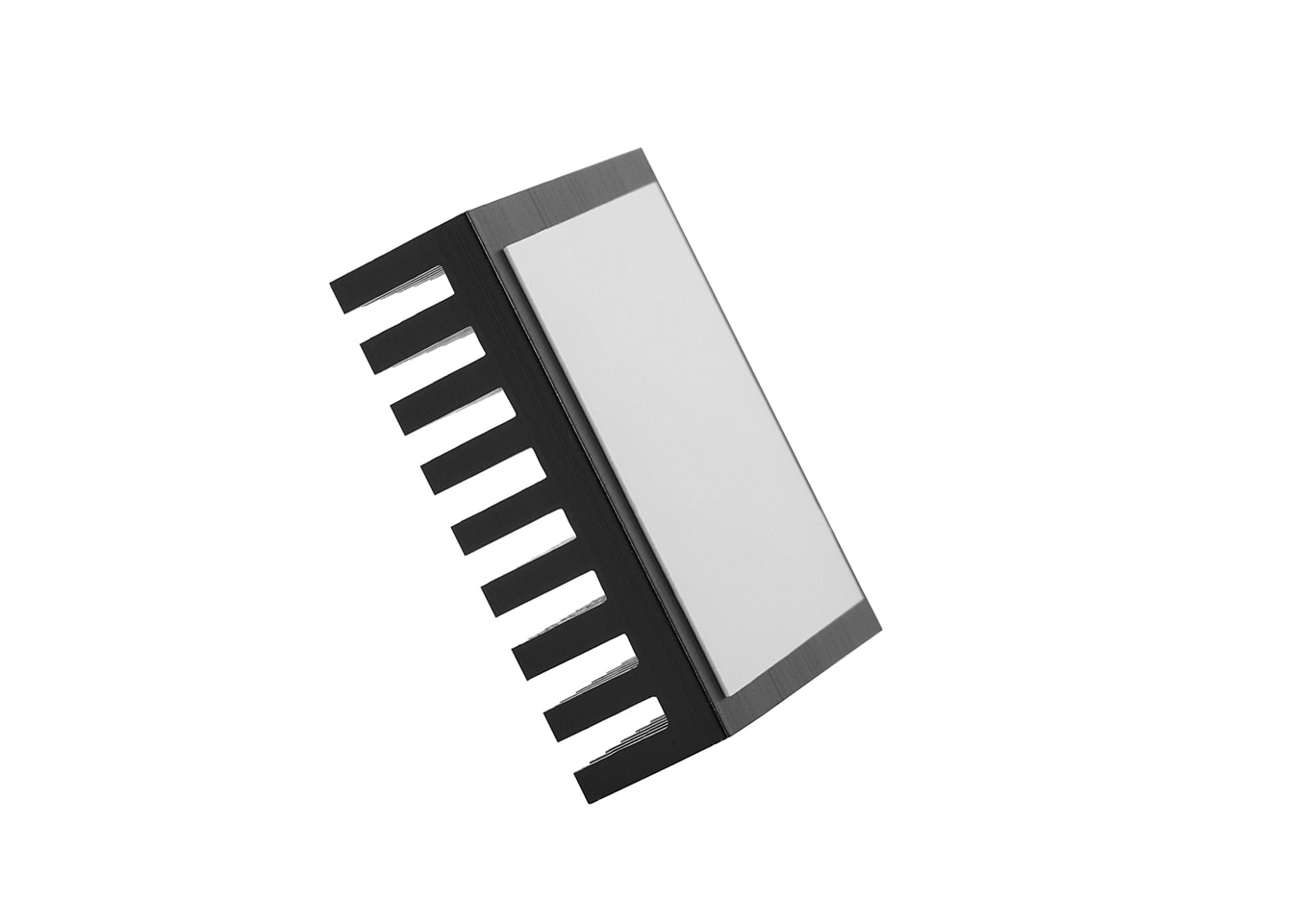

  PHY Heatsink

  The PHY Heatsink is an expertly designed extruded aluminum heat sink, optimized for efficient thermal management. Ideal for high-power electronics, its durable aluminum construction ensures excellent heat dissipation and longevity. Featuring a sleek and compact profile, it’s suited for a wide range of industrial applications, offering reliable performance and easy installation.








  >

  <
  INQUIRE NOW
•

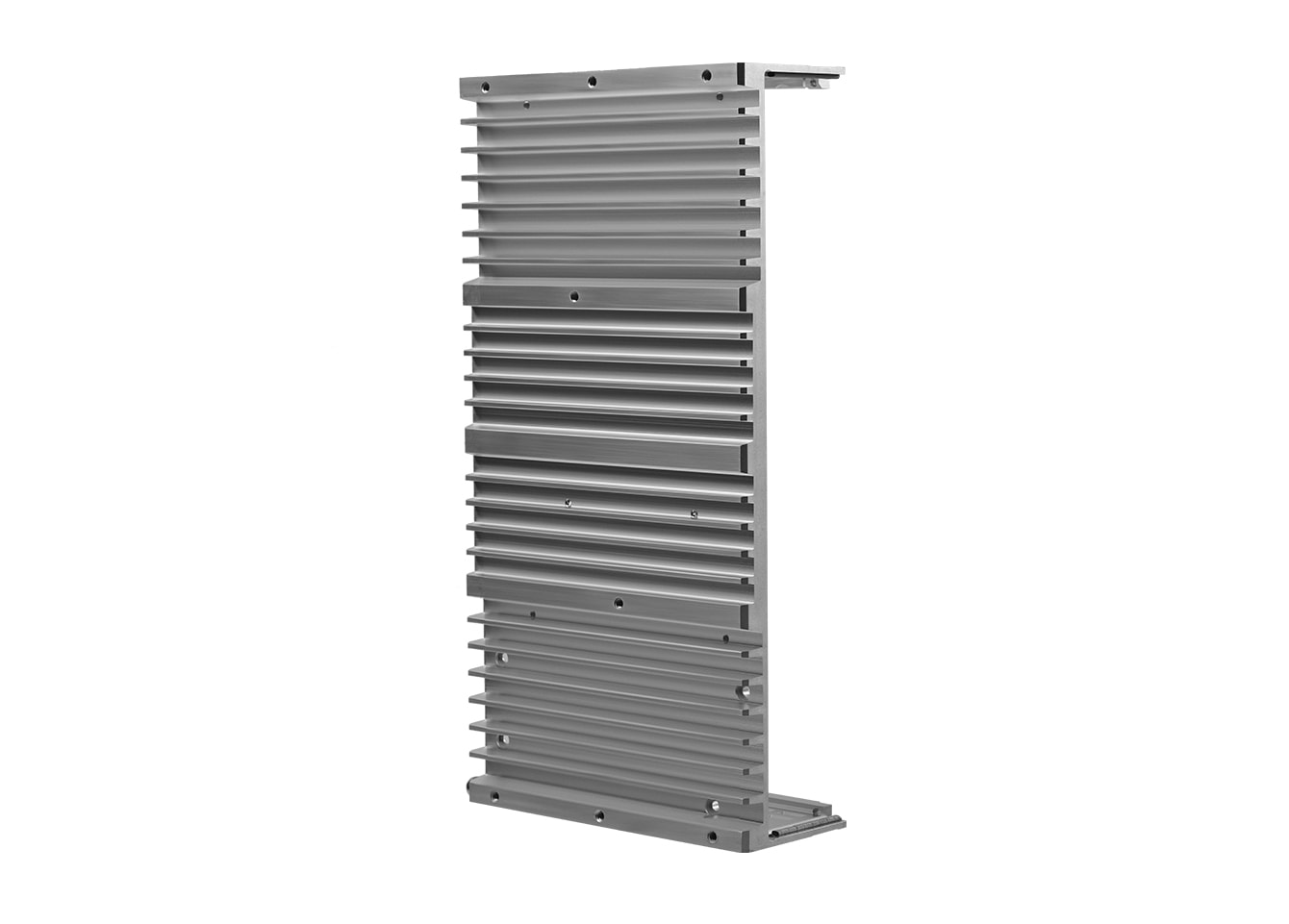

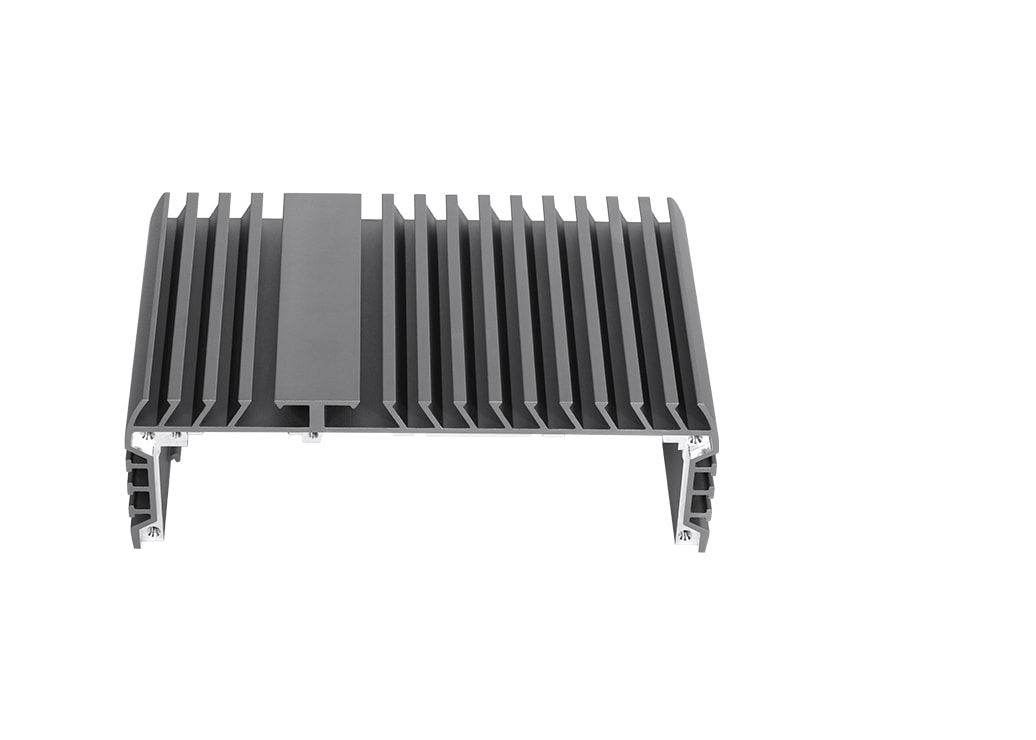

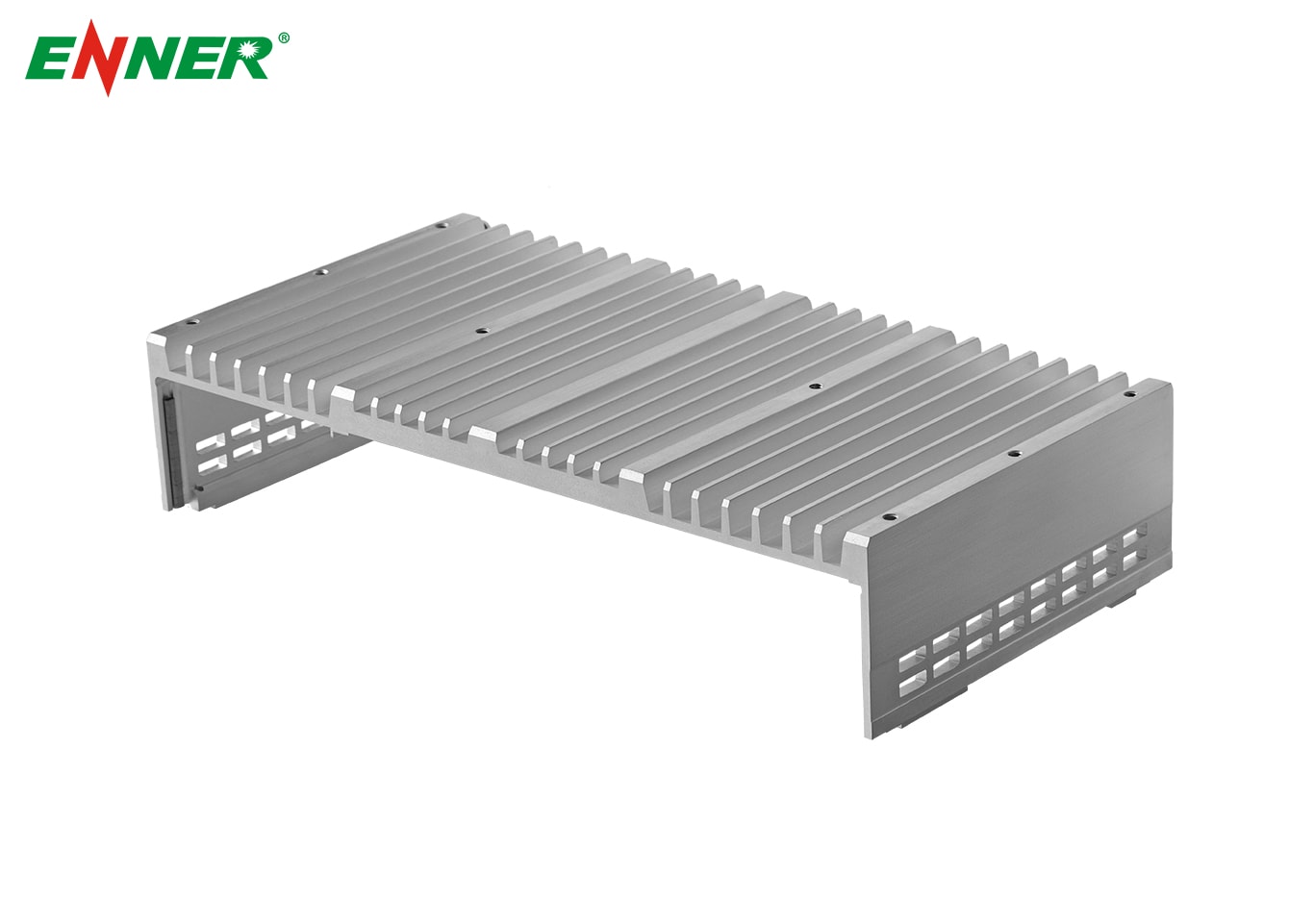

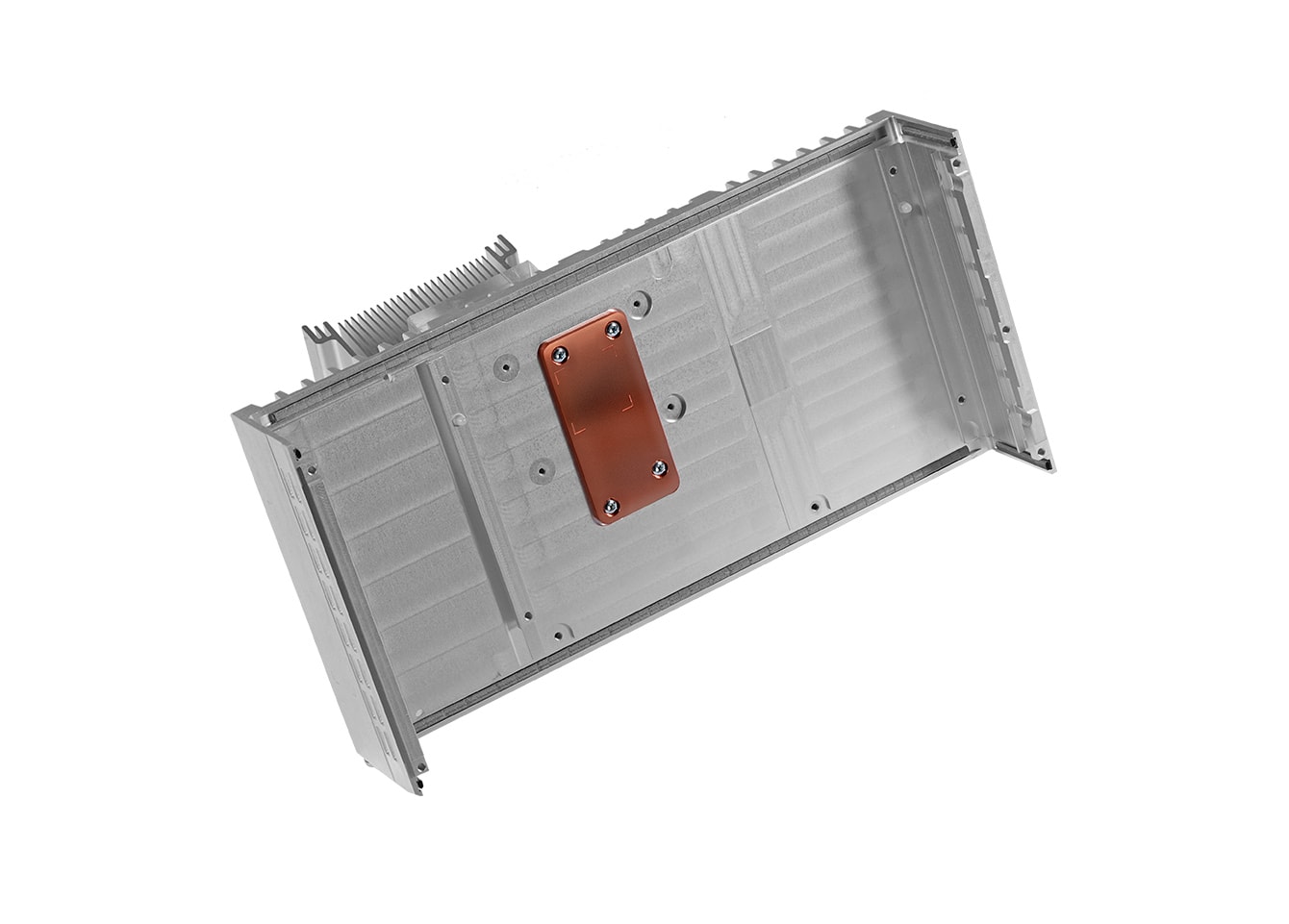

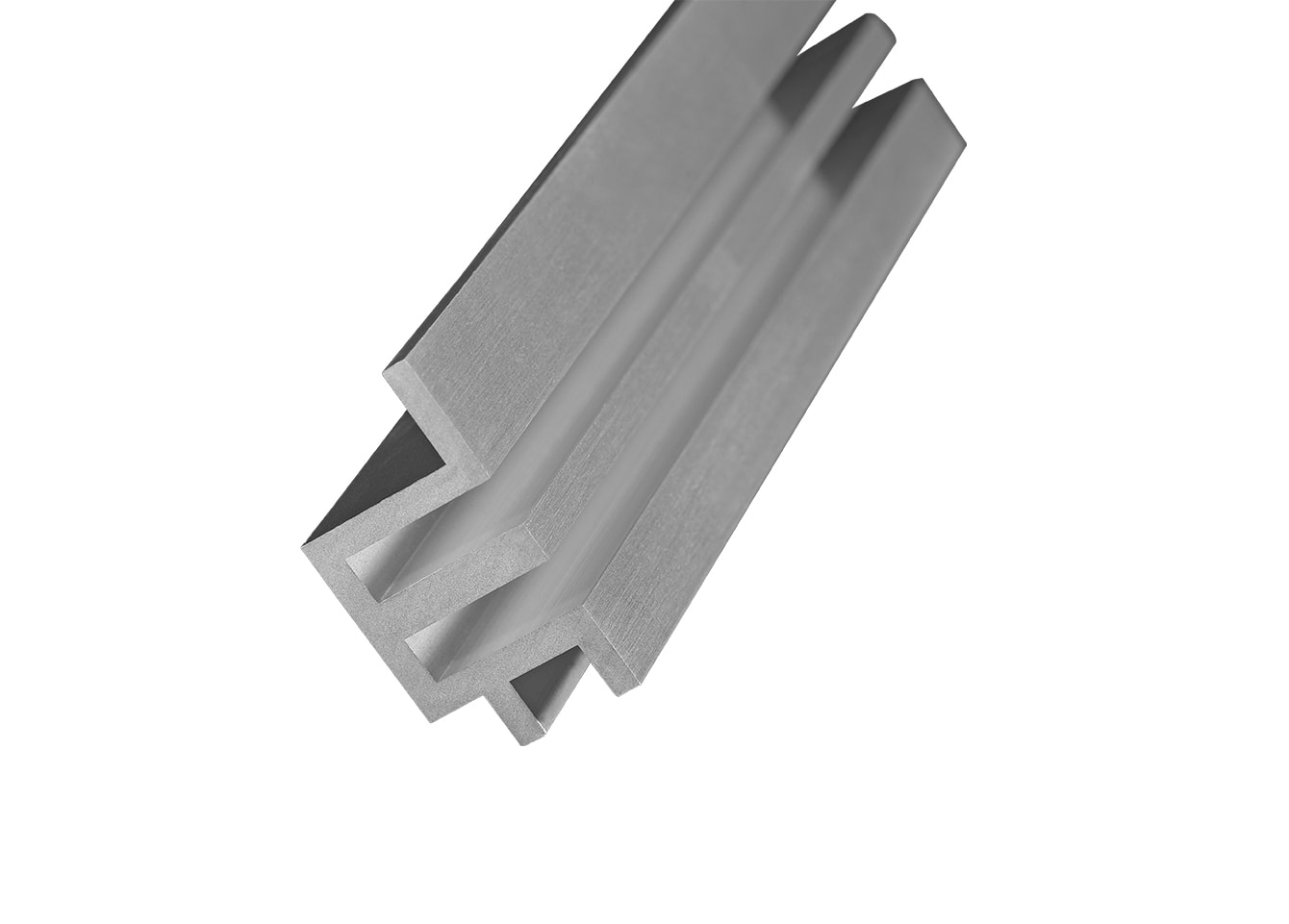

  Heatsink Housing IPC

  The Heatsink Housing IPC is a robust extruded aluminum solution designed for superior heat dissipation in industrial applications. This sturdy housing structure enhances airflow, ensuring optimal thermal management for IPC (Industrial PC) systems. Its precision-engineered fins maximize surface area for efficient cooling, making it ideal for high-performance environments.








  >

  <
  INQUIRE NOW
•

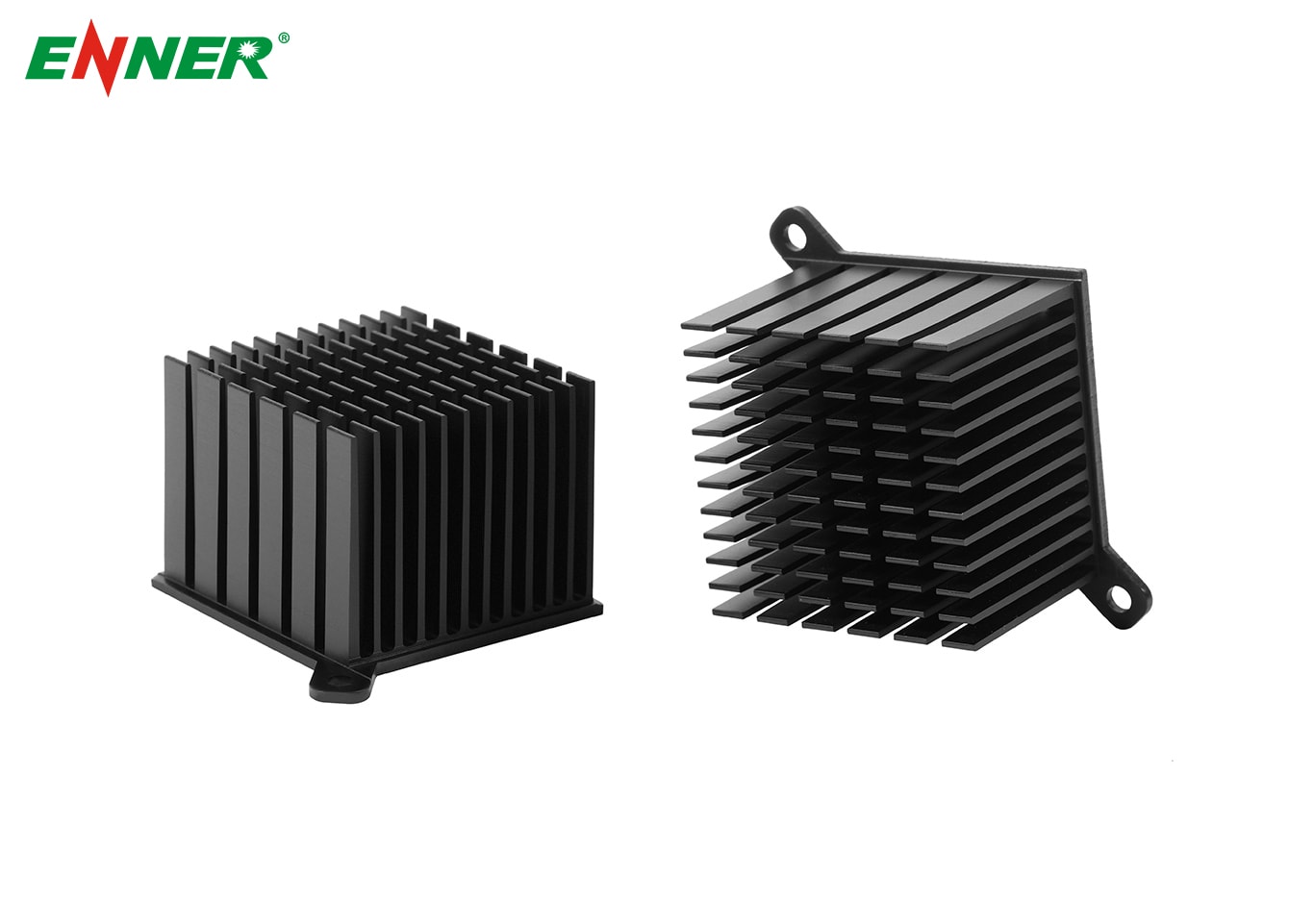

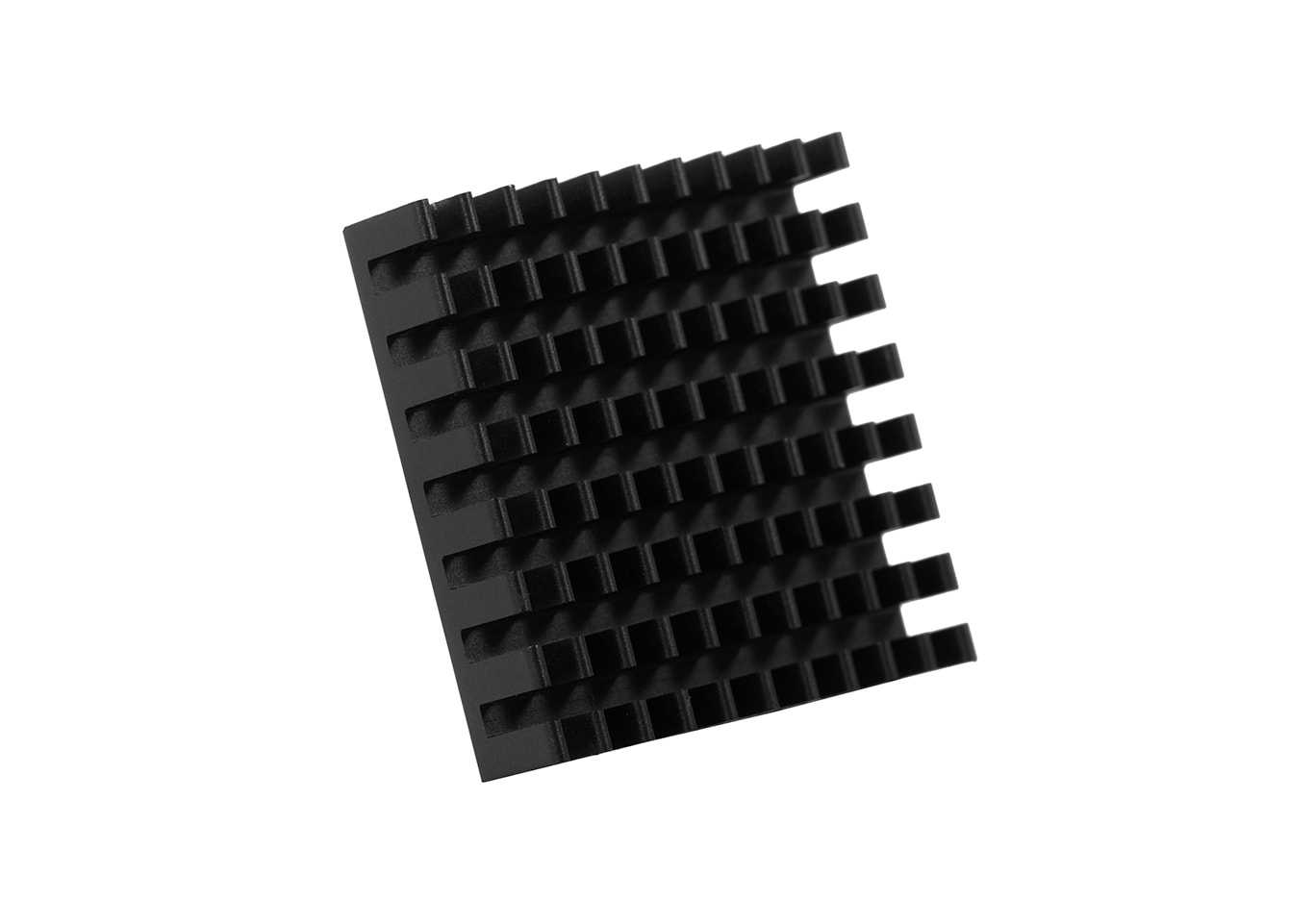

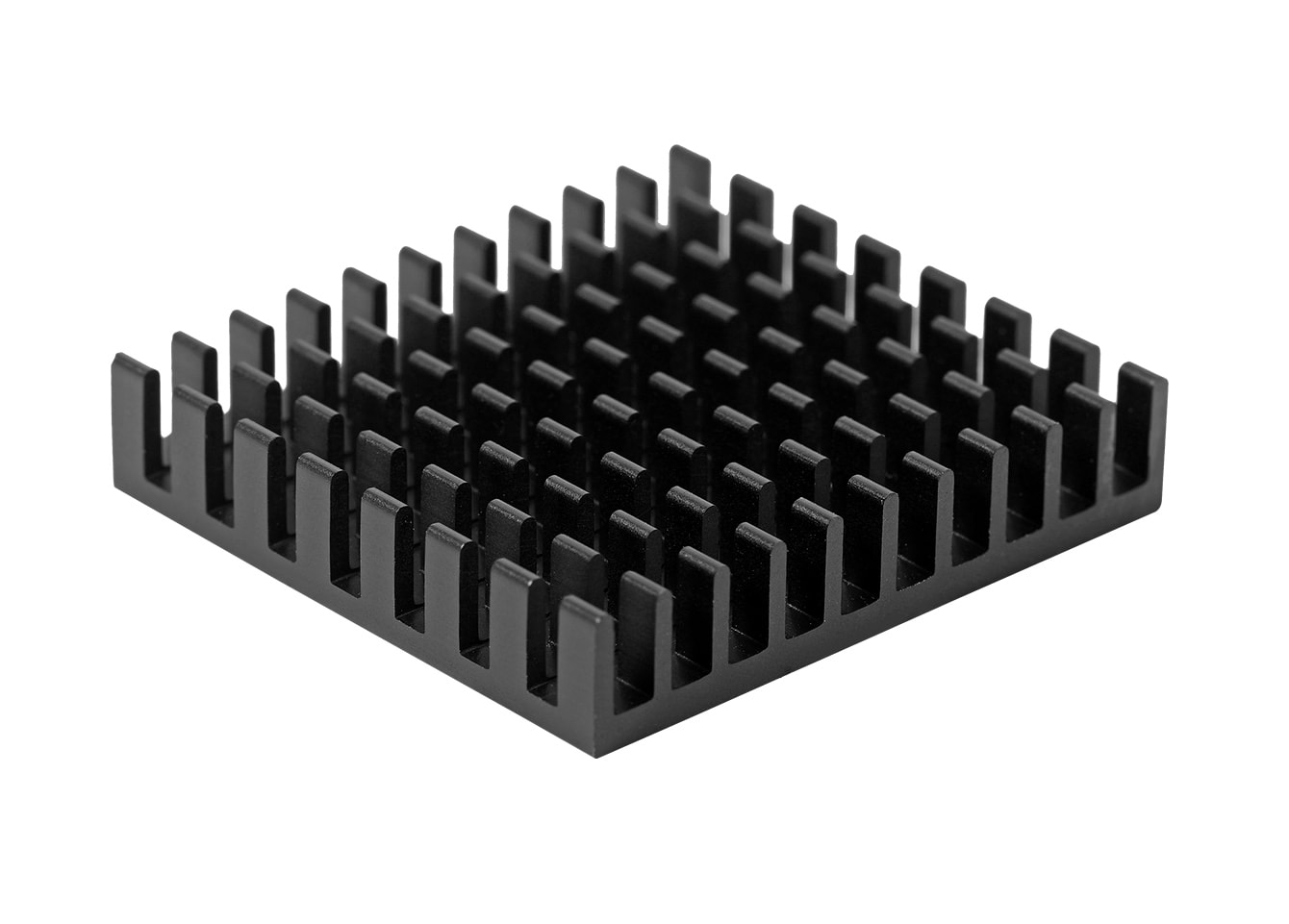

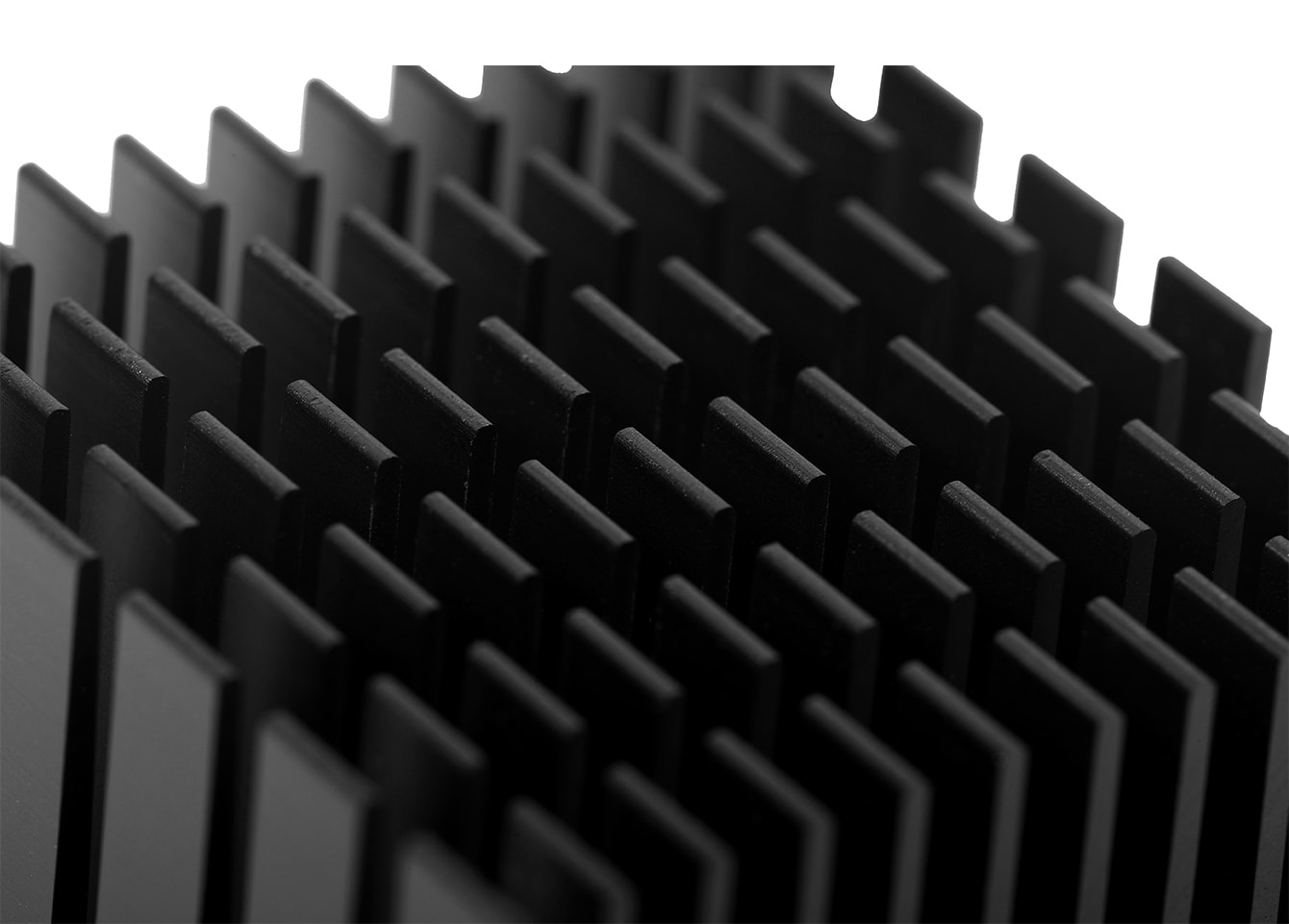

  BGA Heatsink

  This BGA extrusion heat sink is crafted from high-quality aluminum with a black anodized finish for optimal heat dissipation. Its vertical fin structure maximizes airflow and surface area, making it ideal for compact electronics. Lightweight yet durable, it ensures reliable cooling for BGA components, enhancing performance and longevity.








  >

  <
  INQUIRE NOW
•

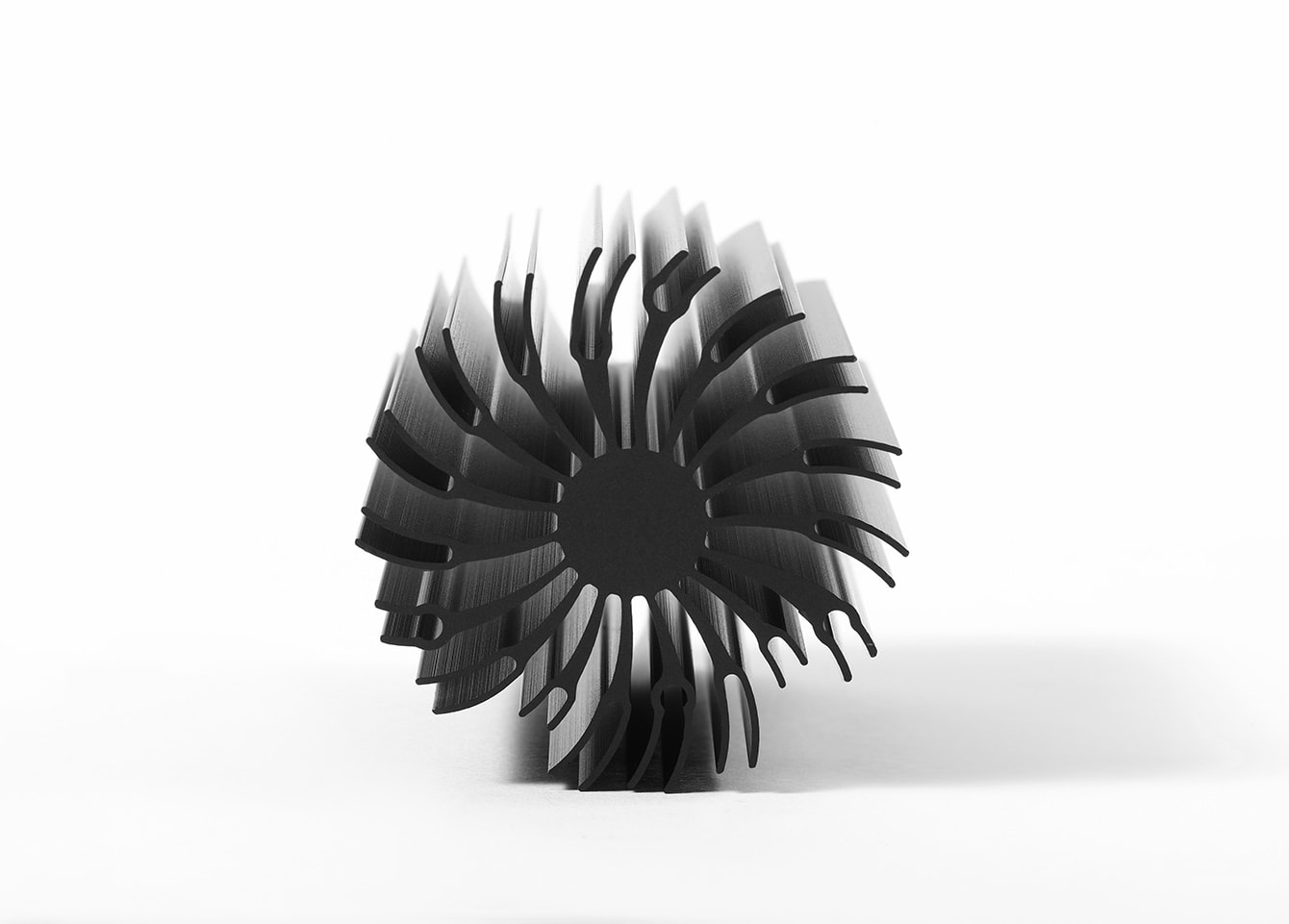

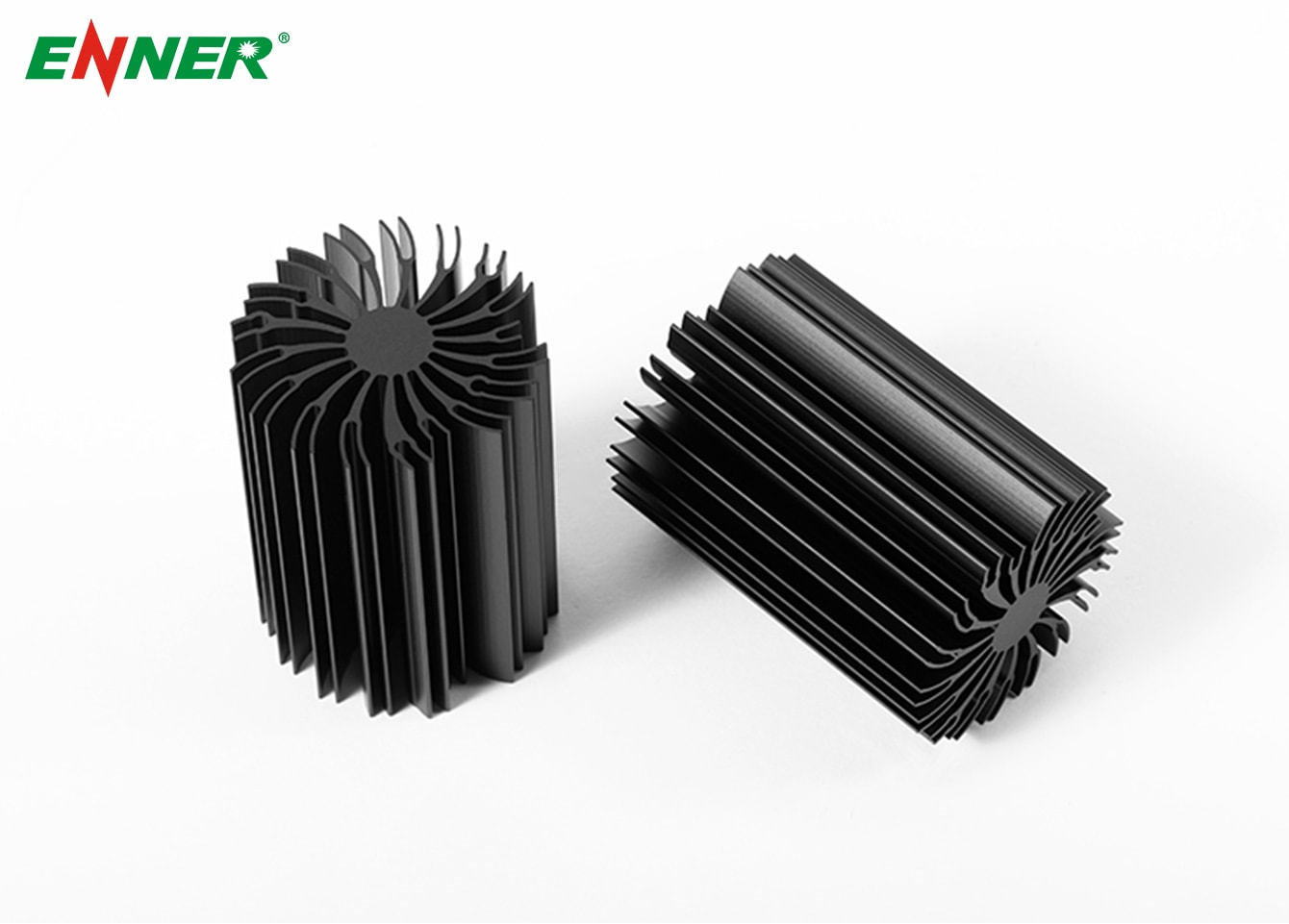

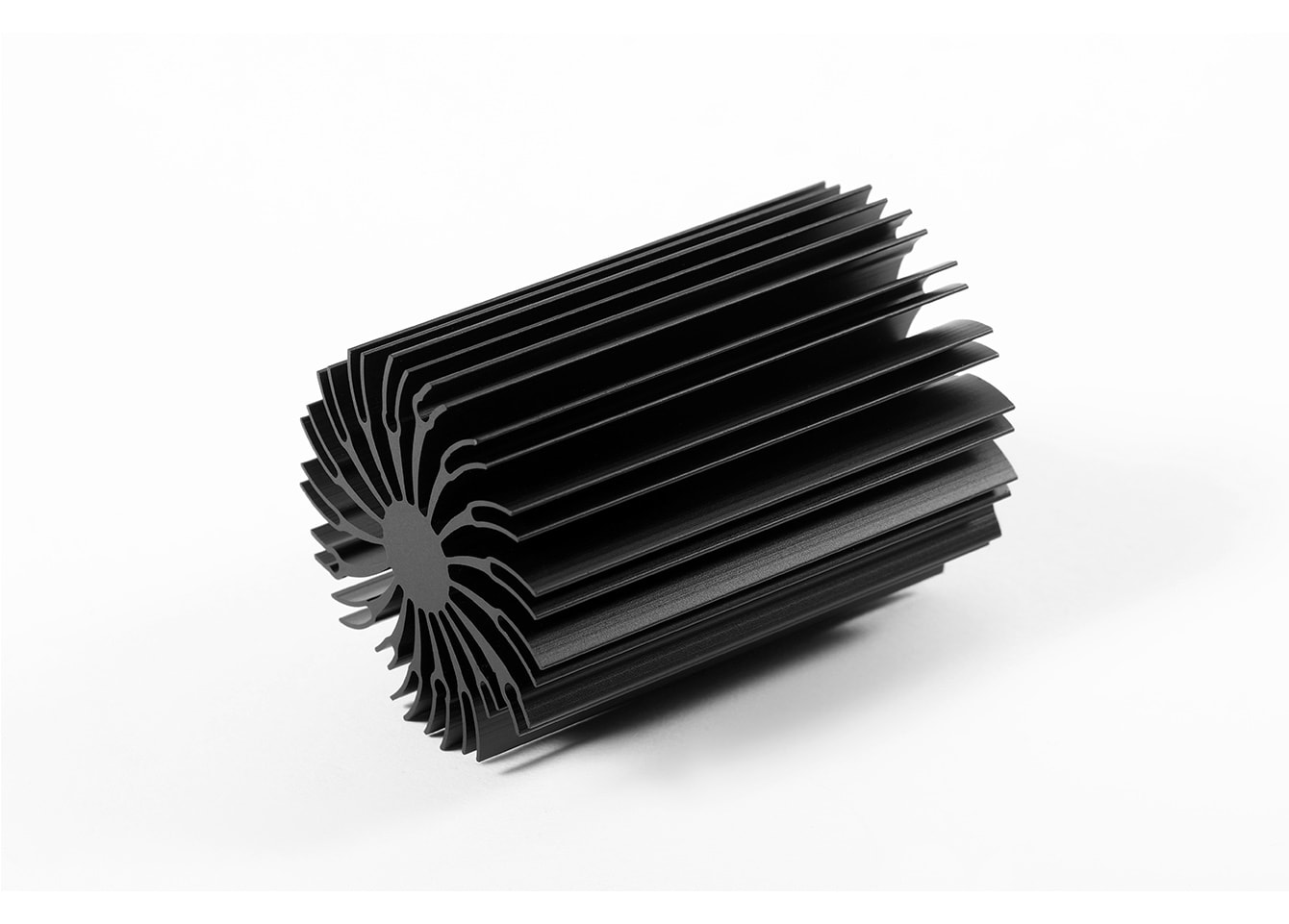

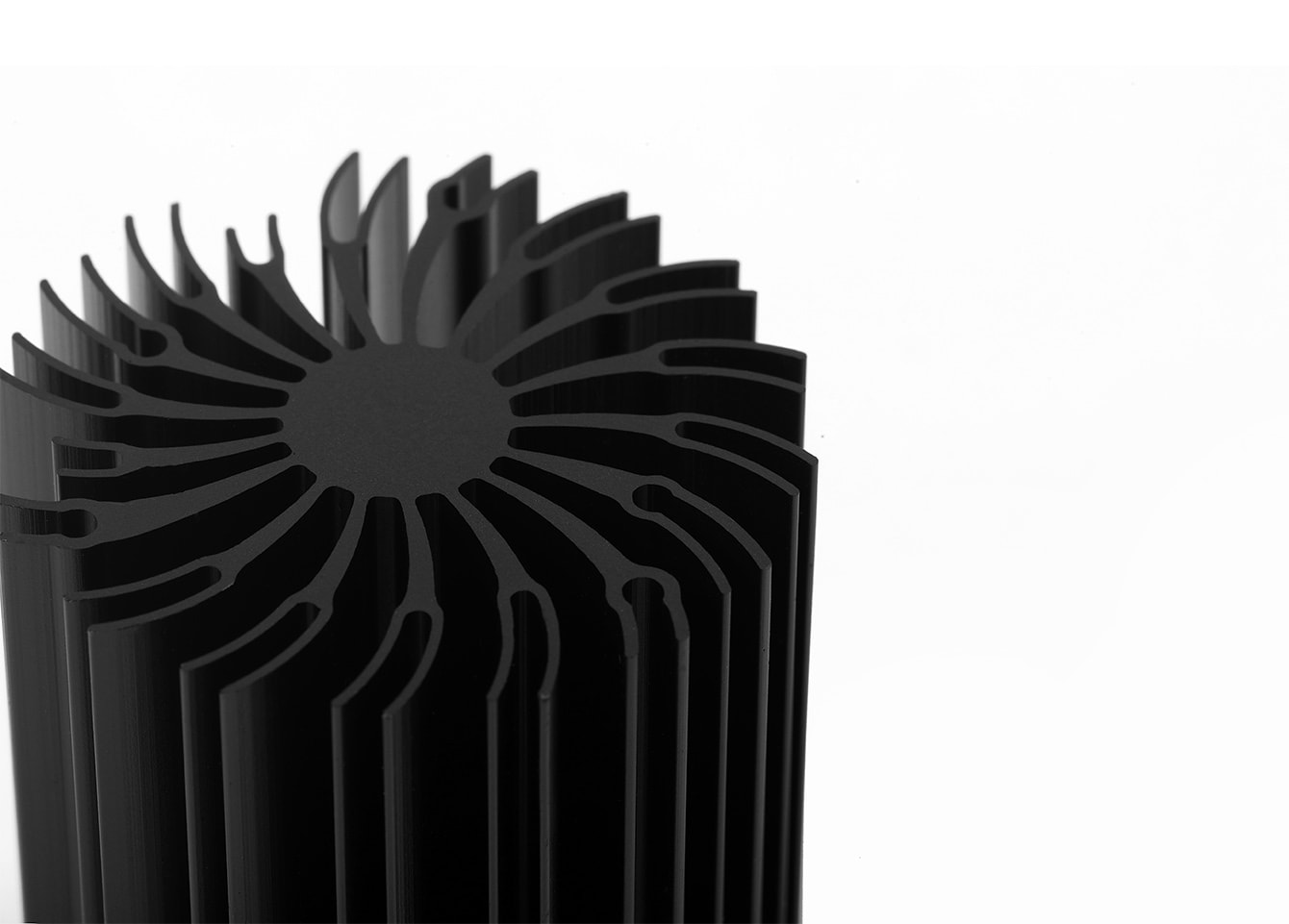

  Led Light Heatsink

  This LED light heat sink is made of premium aluminum with a black anodized finish for efficient thermal management. Its radial fin design optimizes airflow and heat dissipation, making it perfect for cooling high-power LED lighting solutions. The lightweight yet durable structure ensures consistent performance and helps extend the lifespan of LED components by preventing overheating. Ideal for applications requiring compact, effective cooling for LED lights.








  >

  <
  INQUIRE NOW
•

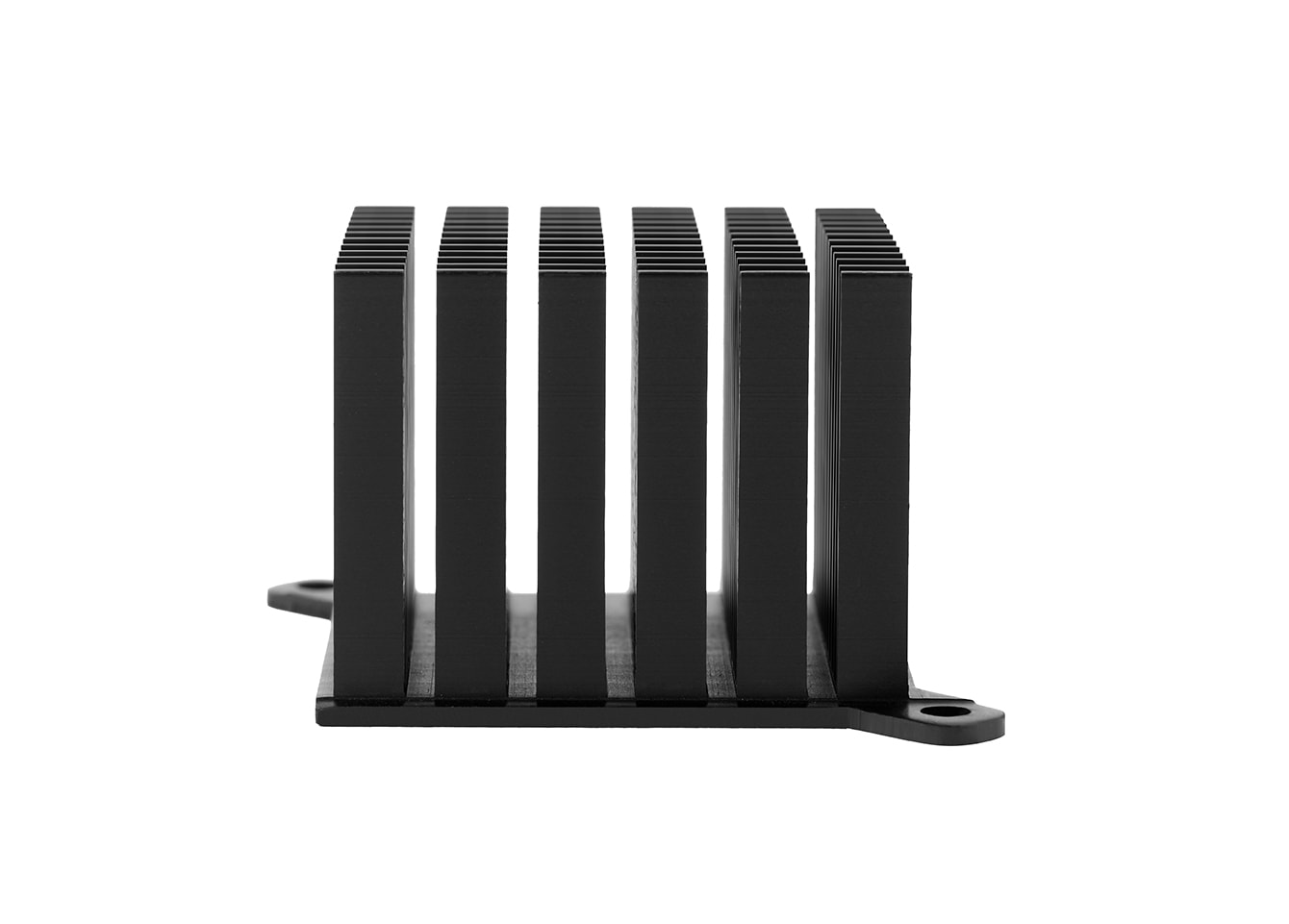

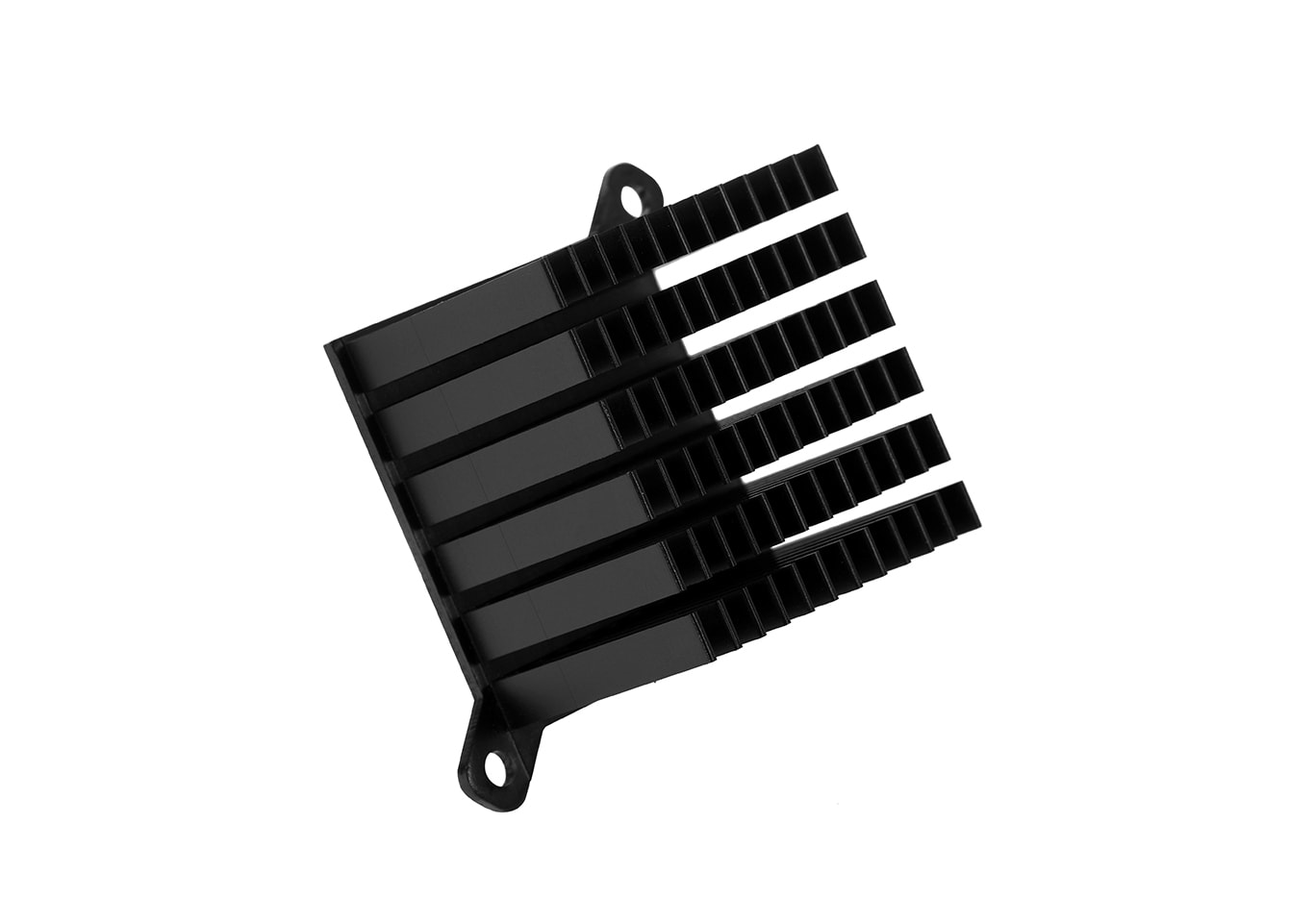

  Bridge Chips Heatsink

  This bridge chip heat sink is constructed from high-quality aluminum with a black anodized finish for superior thermal management. Designed for efficient cooling, it features multiple vertical fins that enhance heat dissipation and airflow. The mounting tabs make installation easy and secure. Ideal for bridge chips and other critical components, this heat sink ensures stable performance and longevity of your devices by effectively preventing overheating. Perfect for use in compact electronic systems requiring robust cooling solutions.








  >

  <
  INQUIRE NOW
•

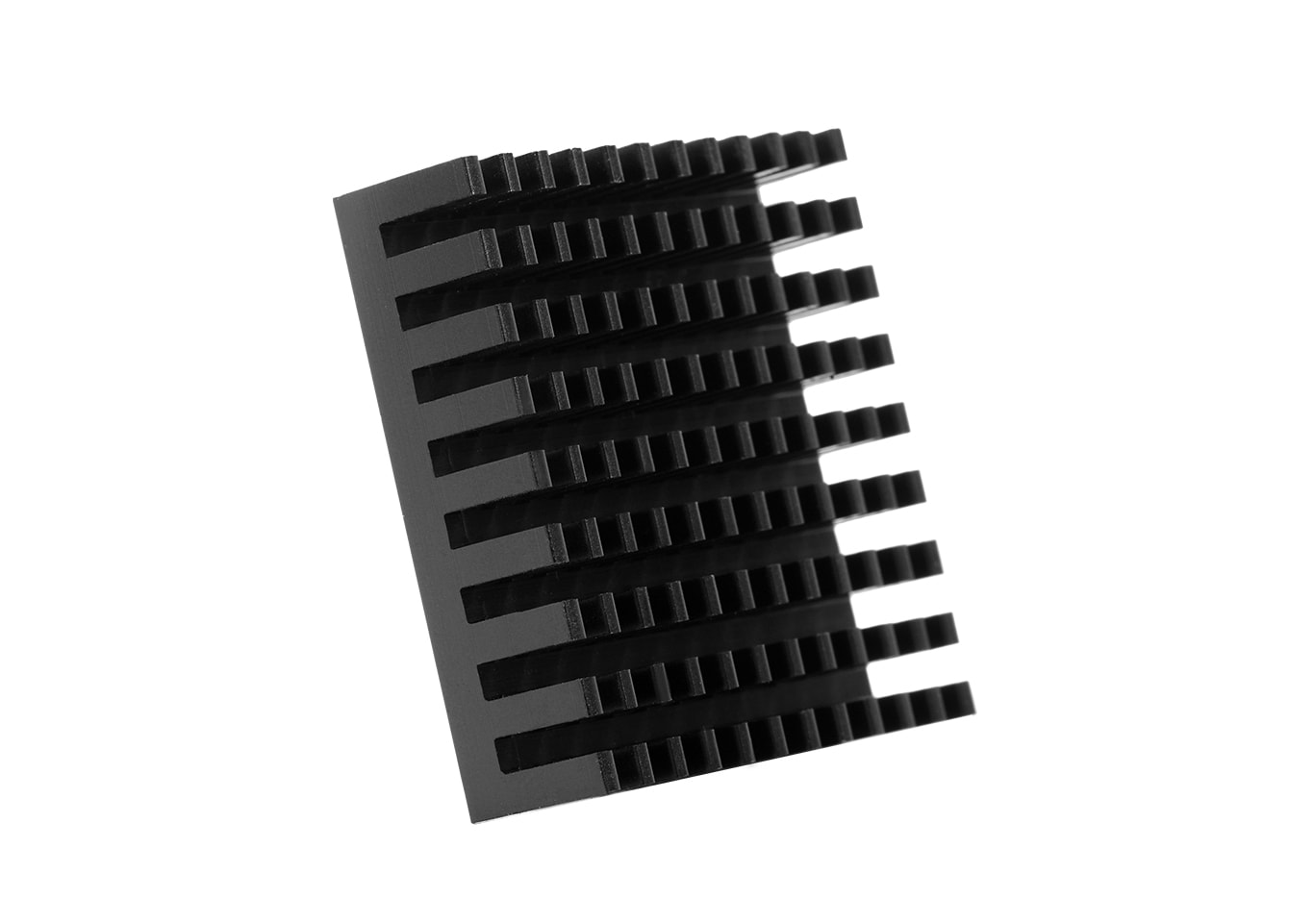

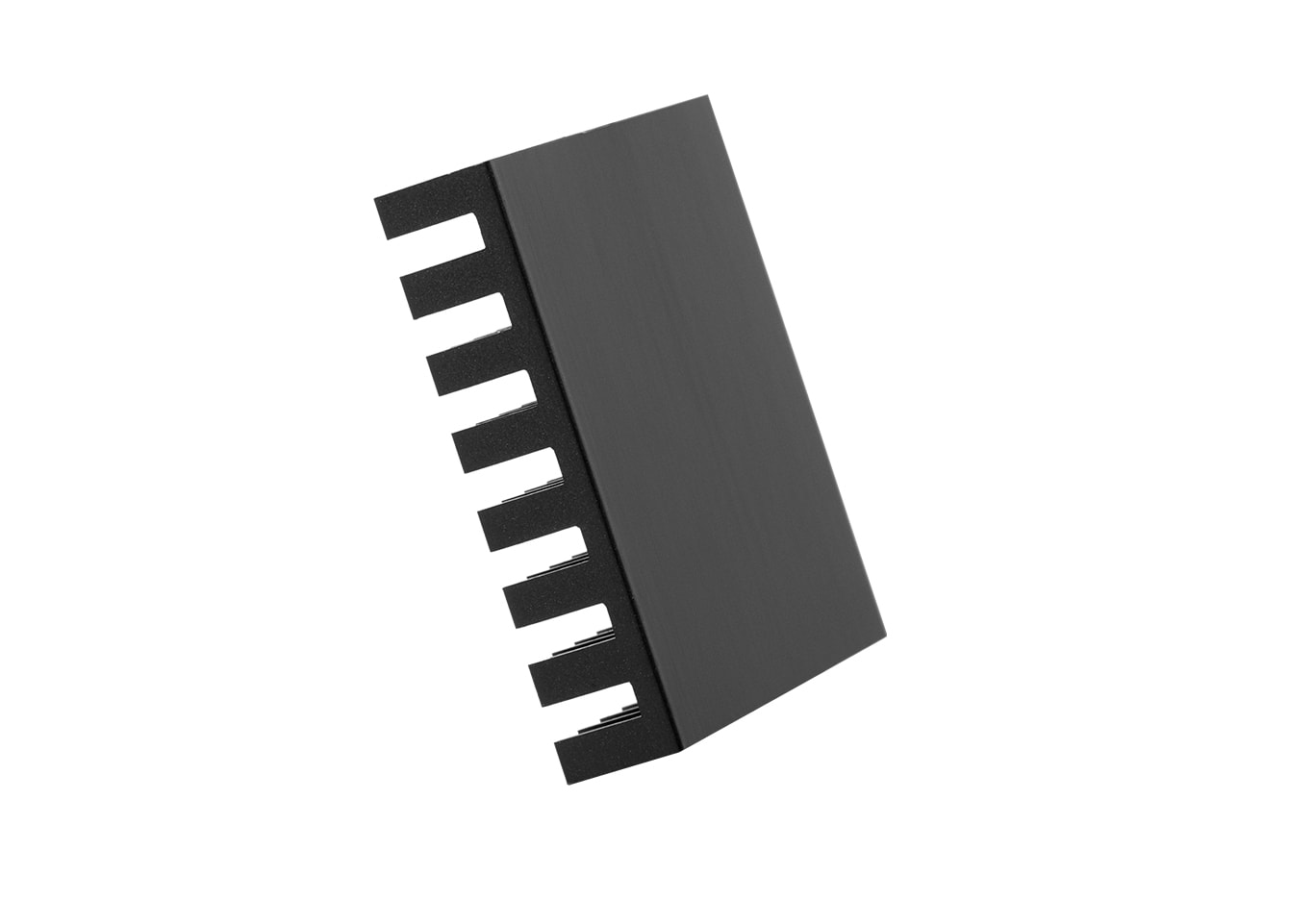

  BGA Heatsink

  This BGA heat sink is constructed from high-quality aluminum with a black anodized finish for efficient thermal conductivity. Its compact design with vertical fins maximizes heat dissipation while keeping the overall weight low. Ideal for Ball Grid Array (BGA) applications, it ensures stable temperatures and extends component life by preventing overheating. The lightweight yet robust construction makes it a reliable solution for various compact electronic assemblies requiring effective heat management.








  >

  <
  INQUIRE NOW

• «
• 1
• 2
• 3
• 4
• 5
• »

Efficient Extrusion Heat Sinks offer several advantages, especially when considering Extruded Aluminum Heatsink Fabrication:

1. High-Quality Extruded Heat Sinks:



   These heat sinks are crafted with precision and expertise, ensuring top-notch quality in their design and performance.


2. Efficient Extrusion Heat Sinks:



   The extruded heatsinks are engineered for optimal heat dissipation, effectively managing thermal loads and maintaining component temperatures within safe limits.


3. Extruded Aluminum Heatsink Fabrication:

   The process of extrusion allows for the creation of intricate heat sink designs with enhanced surface areas, maximizing cooling efficiency.


4. Reliable Thermal Management:

   By utilizing extruded aluminum, these heat sinks provide excellent thermal conductivity, facilitating swift heat transfer from the heat source to the surroundings.


5. Cost-Effective Solution:



   Despite their high performance and quality, Efficient Extrusion Heat Sinks are often cost-effective compared to alternative cooling solutions, making them a preferred choice for various electronic applications.


Efficient Extrusion Heat Sinks stand out for their high-quality craftsmanship, efficient thermal performance, and cost-effective nature, making them indispensable for effective thermal management in electronic systems.
