Understanding and Addressing Stamping Springback: Challenges and Solutions

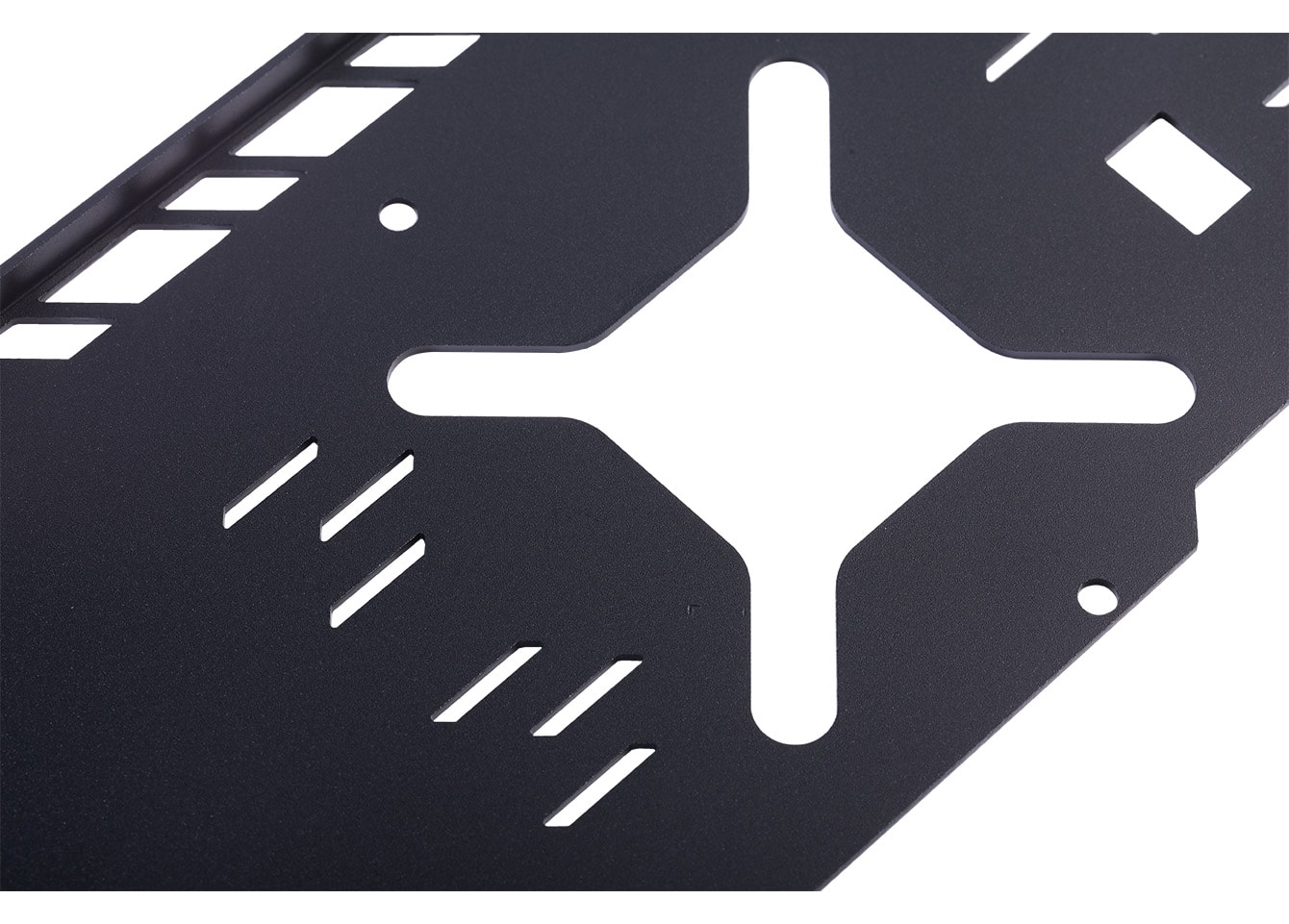

Stamping is a fundamental manufacturing process widely used to create parts from sheet metal through deformation. However, a common issue encountered in stamping is springback. This phenomenon occurs when the load is removed, causing the deformed material to partially return to its original shape. Consequently, the dimensions of the stamped part may not align with the specifications of the stamping die, leading to inaccuracies that can significantly affect product assembly and overall performance. Given the growing importance of precision in manufacturing, addressing stamping springback has become a critical challenge for engineers and manufacturers alike.

The Nature of Springback

When metal sheets are subjected to stamping, they undergo both plastic and elastic deformations. Plastic deformation is permanent, while elastic deformation is temporary and reversible. After the load is lifted, parts will tend to spring back, which can compromise the final shape and dimensional accuracy of the components produced. This is especially problematic because the amount of springback is often unpredictable and can vary based on several factors, including material properties, thickness, shape, and the bending process employed.

Factors Influencing Springback

• Material Properties: The yield strength of the material is a significant determinant of springback. Higher yield strengths typically correlate with greater springback tendencies. For instance, thick plates made from hot-rolled carbon steel exhibit different springback characteristics compared to cold-rolled sheets, primarily due to differences in material properties such as surface quality and mechanical stability.

• Material Thickness: The thickness of the sheet influences its bending behavior. As the thickness increases, the springback effect tends to decrease. This is due to the greater volume of material involved in plastic deformation, which enhances the elastic recovery capabilities, thereby reducing the extent of springback.

• Part Geometry: The shape of the stamped part plays a crucial role in determining springback. More complex geometries, particularly those with curves or intricate profiles, often result in greater springback due to the uneven distribution of stress. U-shaped components, for example, are particularly susceptible to this issue and may require specific design considerations to mitigate springback.

• Bending Angle: The angle at which the material is bent directly affects springback. Larger bending angles generally result in increased springback because the deformation length of the stamped part increases, leading to a more pronounced recovery effect once the load is released.

• Mold Design: Proper mold clearance is essential in minimizing springback. A gap that accommodates the material thickness appropriately can enhance material flow and reduce springback. Moreover, the relative bending radius—larger radii often lead to less pronounced springback—should be carefully calculated during the mold design phase.

• Forming Process: The method of forming can also influence the extent of springback. For instance, corrected bending typically exhibits better springback control than free bending, as the forces involved help to manipulate the material more effectively during the deformation process.

Strategies for Mitigating Springback

To address the challenges posed by springback, several strategies can be employed during both product and process design:

• Material Selection: Choosing materials with lower yield strengths or increasing material thickness can help minimize springback. Understanding the material properties allows for better predictions of springback behavior and can inform design choices.

• Design Considerations: For parts that are complex or prone to springback, such as those with intricate curves, incorporating anti-rebound ribs into the design can help counteract the springback effect. Additionally, using a modular approach by combining several simpler parts can also mitigate challenges associated with springback.

• Process Adjustments: Implementing a pre-forming process can distribute stresses more evenly and alleviate potential springback issues. Furthermore, reducing the gap between mold components can improve fit and decrease springback tendencies.

• Using Blank Holder Force: Adjusting the blank holder force during stamping can help control material flow and stress distribution. An optimized blank holder force ensures that the material is drawn adequately, reducing the likelihood of springback.

• Utilizing Drawbeads: The strategic placement of drawbeads can alter the flow of material, effectively redistributing stress and enhancing formability. This technique is particularly beneficial for parts that are difficult to form without inducing significant springback.

• Innovative Techniques: Employing advanced techniques such as heat treatment before bending can reduce material hardness and yield strength, thus minimizing springback. Additionally, local compression and controlled bending processes can further help in managing the springback effect.

Conclusion

Addressing stamping springback is crucial for achieving the desired accuracy and functionality in manufactured parts. By understanding the influencing factors—ranging from material properties to mold design—and employing targeted strategies to mitigate springback, manufacturers can improve product quality and assembly accuracy. As the industry continues to evolve, innovative approaches to tackle springback challenges will play an essential role in enhancing manufacturing efficiency and precision. Through careful design and process optimization, it is possible to minimize the impact of springback and ensure that stamped components meet the stringent requirements of modern applications.
